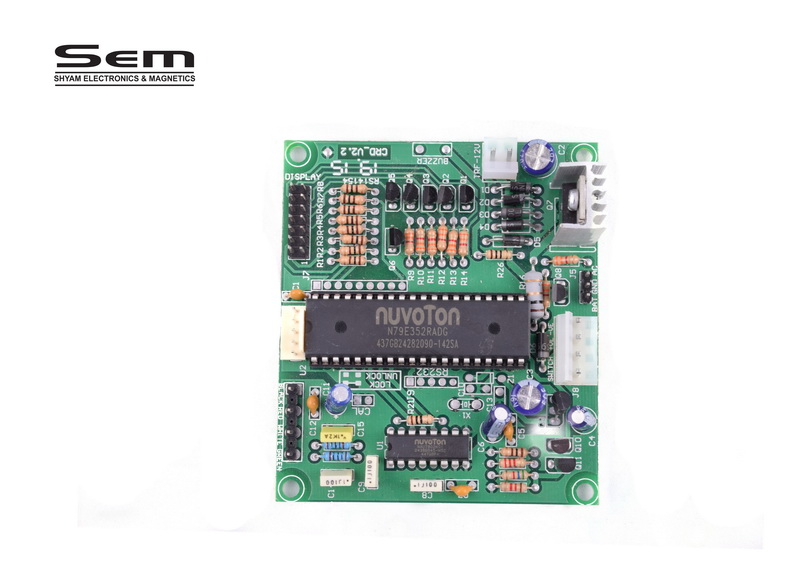

MOTHER CPU CARD FOR DIGITAL WEIGHING SCALE

MOTHER CPU CARD FOR DIGITAL WEIGHING SCALE

DESCRIPTION –

THESE CPU CARD ARE DESIGNED TO FULL FILL REQUIREMNT OF DIGITAL WEIGHING SCALES. THESE CARDS ARE BASED ON LATEST TECHNOLOGY TO GIVE FAST AND ACCURATE MESURMENT OF WEIGHT. REPTABILITY & STABILTY IS THE MAIN FEATURES IN OUR CARD.

WE USE ONLY BRANDED & TESTED MATERIAL IN OUR CARDS SO THEY CAN PERFORM PERFECTLY FOR LONG PERIOD.

Main application-

DIGITAL WEIGHING SCALES

Models Available-

MOTHER CARD WITH IN BUILT POWER SUPPLY
MOTHER CARD WITH OUT POWER SUPPLY

SALIENT FEATURES-

1.VERY LOW CURRENT SOURCE.
2.EXTRA BATTERY BACK UP
3.LOW BATTERY INDICATION
4. FAST & ACCURATE MESURMENT
5. DISPLAY OF MANUFACTURING DATE
6.EASY CALIBRATION SETTING
7.CALIBRATION LOCK
8.RS232 TERMINAL OUTPUT
9. NO EFFECT FROM STATIC CHARGE .
10.EXCELLENT STABILTY & REPETABILITY.

Specification-

A-Power Requirement

1. Operating voltage —AC 10V TO 16V (Secondary voltage of Transformer)
2. Operating current —AC 500mA to 1A (including battery charging)
3. Power back up —6V/4Ah or 6V/4.5Ah SMF Battery
4. Transformer Rating —-10 V/500mA to 12 V / 750m

B-Microcontroller
N79E352DDG -8 Bits
C- ADC
NAU7802 , ADS 1230
